上海淞江减震器集团有限公司官方网站为您介绍：SHM型 冷却塔可调式弹簧减振器信息，淞江集团为众多世界一线品牌冷却塔配套弹簧减震器，该产品具有良好的减振降噪效果，安装简单方便，免维护型，可以调整水平高度，以下是详细介绍。

一、SHM型 冷却塔可调式弹簧减振器实物拍照：

二、SHM型 冷却塔可调式弹簧减振器介绍：

1、弹簧采用低频率值设计，并经喷塑处理，耐候性佳，防振效果好。
2、顶部、底部均采用防滑耐磨橡胶以及固定螺栓，安全性能大大提高。
3、安装简单并根据实际需要调整水平及高度。
4、能够有效隔离冷水机组、冷却塔、热泵机组、发电
机组、等大型动力设备的振动，并保护及延长其使用
寿命。注：-1为一组弹簧组合、-2为二组弹簧组合、
-4为四组弹簧组合、-6为六组弹簧组合、-9为九组弹
簧组合。
1, spring with low frequency value design, and
after spray treatment, good weatherability,
good shockproof effect.
2, top, bottom are the use of non slip resistant
rubber and fixed bolt, the safety performance
is greatly improved.
3, the installation is simple and according to
the actual need to adjust the level and height.
4, can effectively isolated cold water units,
cooling tower, heat pump unit
s, power generation units, such as large-scale
power equipment vibration, and protect and
extend its service life.
Note: -1 is a set of springs, -2 is the combination
of the two groups of springs, -4 s of springs,
-6 is a combination of six groups of springs,
-9 for the combination of nine groups of springs.

三、SHM型 冷却塔可调式弹簧减振器结构图及参数表：

四、SHM型 冷却塔可调式弹簧减振器发货现场：

五、美国BAC冷却塔可调式弹簧减振器安装现场：

六、冷却塔可调式弹簧减振器展会现场：

相关链接：马利冷却塔弹簧减震器“安装后效果不错”

上海淞江减震器集团有限公司官方网站为您介绍：KQJZ-B型裁断机阻尼空气减振器信息，淞江集团为众多大型振动设备提供减振降噪解决方案，以下是为裁断机推荐的一款专用减振器，减振效果没话说，因为他是目前减振效果最好的减振器，而且没有之一，减振效果能达到百分之95以上，安装前后支持检测。

The official website of Shanghai Songjiang shock absorber Group Co., Ltd. introduces to you: kqjz-b cutting machine damping air shock absorber information. Songjiang group provides vibration and noise reduction solutions for many large-scale vibration equipment. The following is a special shock absorber recommended for cutting machine. The vibration reduction effect is speechless, because it is the shock absorber with the best vibration reduction effect at present, and there is no one, and the vibration reduction effect can reach more than 95%, Support testing before and after installation.

一、KQJZ-B型裁断机阻尼空气减振器实物拍照：

二、KQJZ-B型裁断机阻尼空气减振器介绍：

官方承诺 Official promise
橡胶主材：CR（氯丁橡胶）
液压材料：进口阻尼液
使用寿命：10年以上
五年质保：室内使用最高可以质保5年
减震效果：使用前后对比可达95%
支持检测：安装前后支持效果检测（第三方）
问题赔付：如有质量问题，退还全部货款，并承担拆装费和运费；
Main rubber material: CR (chloroprene rubber)
Hydraulic material: imported damping fluid
Service life: more than 10 years
Five-year warranty: indoor use can be guaranteed for up to 5 years
Shock absorption effect: up to 95% before and after use
Support detection: support effect detection before and after installation (third party)
Compensation for problems: If there is a quality problem, the full payment will be refunded, and the disassembly and assembly fees and freight will be borne;

三、KQJZ-B型裁断机阻尼空气减振器结构及参数介绍：

四、KQJZ-B型裁断机阻尼空气减振器特性：
1、空气式减振装置，配合油压阻尼筒设计；
2、有效抑制设备振幅过大，保证设备稳定；
3、适用于冲击振动的消除，低自然频率值设计，减振效果佳；
4、使用CR（Neoprene Rubber）材质， 耐候性佳使用寿命长;
5、采用机器人焊接气垫壳体，橡胶与壳体一体成形；
6、气密性好，避免经常充气维护，使用更省心；
7、防油帽设计，具抗油性可防止一般油污腐蚀；
8、内部设计阻尼机构可有效避免共振现象；
9、自然频率3Hz~5Hz.阻尼系数 0.12~0.13，使用压力4.5 kg/cm^2，符合JISD-4101气垫耐压测试标准；

五、KQJZ-B型裁断机阻尼空气减振器用途：

适用于裁断机、高速冲床、注塑机、油压机、吸塑机、模切机、全自动喷涂油机、印刷机、纸箱压痕啤机、往复式空压机、下料机、纺织机、刺绣机针剌机、绗缝机、绣花机、成形机、打杯机、CNC机床、剪床、洗濯机、工业洗衣机、三座标检测仪、测长仪、二次元检测仪，测圆仪等自振较大设备的减振及易受振动干扰的设备隔振防振；
其他适合：减振效果要求更高，B型的摆动会比A型的摆动降低；
Suitable for cutting machines, high-speed punches, injection molding machines, hydraulic presses, blister machines, die-cutting machines, automatic spraying oil machines, printing machines, carton creasing machines, reciprocating air compressors, blanking machines, textile machines, embroidery machines Needle punching machine, quilting machine, embroidery machine, forming machine, cupping machine, CNC machine tool, shearing machine, washing machine, industrial washing machine, three-coordinate detector, length measuring instrument, two-dimensional detector, circle measuring instrument, etc. Vibration reduction of equipment with large natural vibration and vibration isolation and anti-vibration of equipment susceptible to vibration interference;
Other suitability: The shock absorption effect is more demanding, and the swing of type B will be lower than that of type A;

六、KQJZ-B型裁断机阻尼空气减振器展会现场：

相关链接：冲床减震器

上海淞江减震器集团有限公司官方网站为您介绍：FZPT-500型酒店浮筑平台橡胶隔振隔声垫信息，淞江集团为众多星级酒店提供减振降噪解决方案，我们推出一款浮筑平台橡胶隔振隔声垫产品，该产品可以完美的吸收楼上的震动和噪音，不会把震动和噪音传递到楼下去，这个产品完美的解决了楼层中和楼顶的一些震动源问题，例如泵房、机房、变压器房、楼顶散热塔等。

The official website of Shanghai Songjiang shock absorber Group Co., Ltd. introduces you: fzpt-500 Hotel floating platform rubber vibration and sound insulation pad information. Songjiang group provides vibration and noise reduction solutions for many star hotels. We launch a floating platform rubber vibration and sound insulation pad product, which can perfectly absorb the vibration and noise upstairs and will not transmit the vibration and noise downstairs, This product perfectly solves some vibration source problems on the floor and roof, such as pump room, machine room, transformer room, roof cooling tower, etc.

一、FZPT-500 型浮筑平台橡胶隔振隔声垫实物拍照：

二、FZPT-500 型浮筑平台橡胶隔振隔声垫安装图纸及参数表：

三、FZPT-500 型浮筑平台橡胶隔振隔声垫施工现场：

四、FZPT-500 型浮筑平台橡胶隔振隔声垫介绍：
FZPT-500型浮筑平台橡胶隔振隔声垫主要用于浮筑层和动力设备的隔振隔声，能最大限度地缩减、隔离建筑物结构件上的振动、噪声的传递污染。产品主要由天然合成橡胶、中间锦纶尼龙骨架加强层通过高温硫化模压而成，下部凸台内设有孔能起到一定的空气隔振和阻尼作用，固有频率较低、隔振隔声效果较好等优点。
FZPT-500 type floating platform rubber vibration and sound insulation mat is mainly used for vibration and sound insulation of floating layer and power equipment, which can minimize and isolate vibration and noise transmission pollution on building structural parts. The product is mainly made of natural synthetic rubber and the middle nylon nylon skeleton reinforcement layer is molded by high temperature vulcanization. The holes in the lower boss can play a certain role in air vibration isolation and damping. The natural frequency is low, and the vibration and sound insulation effect is relatively low. Good and other advantages.

产品尺寸为500*500mm（0.25m2/块），厚度为50mm，可大面积组合铺设，快捷省时。也可根据工程需要任意切割大小，可耐酸、碱、油、防腐、防霉、防湿、防老化、阻燃，耐温范围-20~90℃，阻尼比≥0.08。
The product size is 500*500mm (0.25m2/block), and the thickness is 50mm. It can be combined and laid in a large area, which is quick and time-saving. It can also be cut to any size according to engineering needs. It is resistant to acid, alkali, oil, corrosion, mildew, moisture, aging, and flame retardant. The temperature range is -20~90℃, and the damping ratio is ≥0.08.

FZPT-500 型浮筑平台橡胶隔振隔声垫得到了用户的好评，该产品广泛应用于下列隔振隔声要求高的场合：
广播、影视、录音、播音、演播厅等做浮筑结构隔声。
办公楼、居民住宅楼、医院 、学校试验室等楼面隔声。
歌舞厅、乐队表演、武术馆等体育、娱乐场所楼面隔声。
各种设备机房内的隔振隔声。
This product is widely used in the following occasions with high requirements for vibration and sound insulation:
Floating structure sound insulation for broadcasting, film and television, recording, broadcasting, studios, etc.
Sound insulation of office buildings, residential buildings, hospitals, school laboratories, etc.
Sound insulation on the floor of sports and entertainment venues such as song and dance halls, band performances, and martial arts halls.
Vibration and sound insulation in various equipment rooms.

五、FZPT-500 型浮筑平台橡胶隔振隔声垫展会现场：

相关链接：浮筑隔音楼板方案

上海淞江减震器集团有限公司官方网站为您介绍：SHA-S-60卧式蜗壳泵侧托式弹簧减震器信息，淞江集团是一家从事水泵减震器生产厂家，为风机推荐一款专用的弹簧减震器，采用低频阻尼型设计，让水泵大大的降低震动，非常明显，以下是卧式蜗壳泵侧托式弹簧减震器介绍。
Shanghai Songjiang absorber group limited official website for your introduction: JB-60-S fan special low frequency damping spring damper, Songjiang group is a professional engaged in the fan damper manufacturers recommend a special spring damper for fan, the low frequency damping type design, let the wind machine greatly reduced to enhance the effect of vibration, *, is very obvious, the following is fan dampers are introduced.

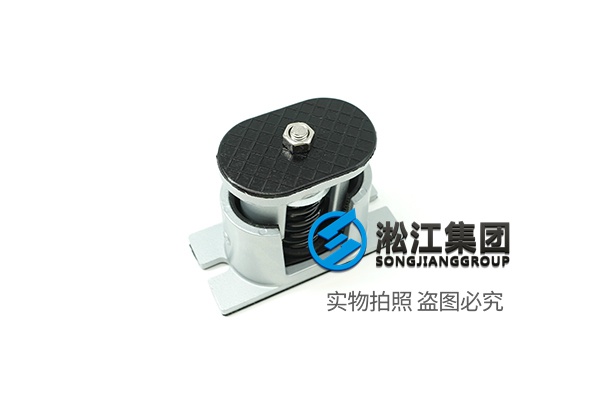

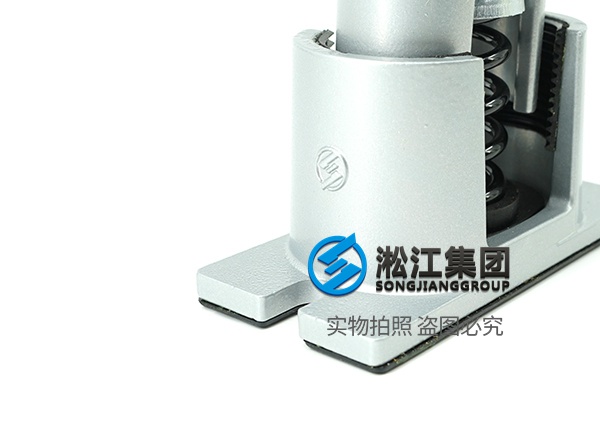

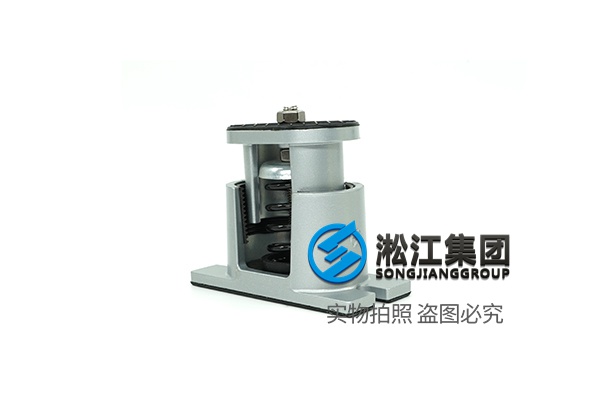

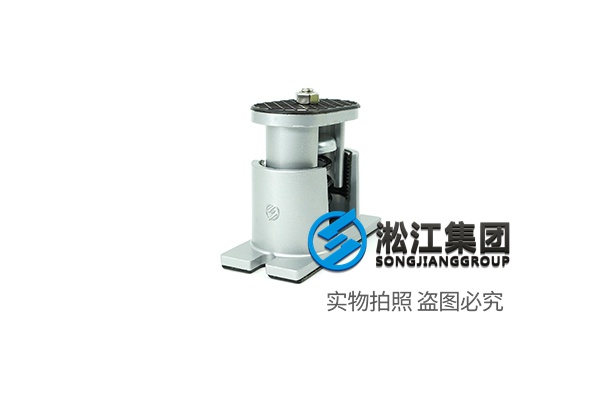

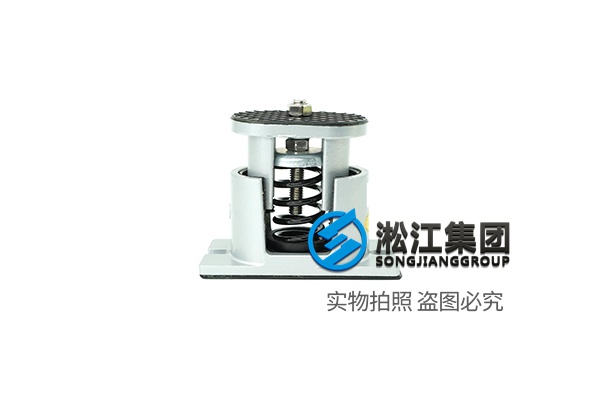

一、卧式蜗壳泵侧托式弹簧减震器实物拍照：

SHA型低频可调弹簧减振器特性:
1、本体材质为铝合金。
2、特殊结构设计，可依实际需要调整高度。
3、外形轻巧坚固，安装容易；适用于各类机械内避振装置。
4、弹簧均经热处理，ED放锈，烤漆或喷塑程序处理。
5、荷重挠度25mm能有效消除机械振动。

6、新款SHA型减震器外壳上设计了淞江集团LOGO作为防伪标识，这样大大增加了防伪成本。
SHA型低频可调弹簧减振器具有安装方便等特点，减振器上下端各有螺丝及螺丝孔，弹簧上端有高度调节螺母，可根据安装需要自由调整高度减振器两端有侧向橡胶阻尼，加大了垂向的阻尼系数，提高了纵向和横向的刚度，确保设备能更安全的运行。

二、卧式蜗壳泵侧托式弹簧减震器结构图：

三、卧式蜗壳泵侧托式弹簧减震器发货现场：

四、卧式蜗壳泵侧托式弹簧减震器安装现场：

使用现场链接：EBARA卧式双吸蜗壳泵减震器

安装设计解决方案链接：【样册P71】水泵减振器安装形式之侧面托浮式减振方式

以上风机专用低频阻尼弹簧减震器信息来源于上海淞江减震器集团有限公司官方网站减震器产品中心，如需了解更多请点击：风机弹簧减震器

相关链接：SHA型可调阻尼弹簧减震器安装说明

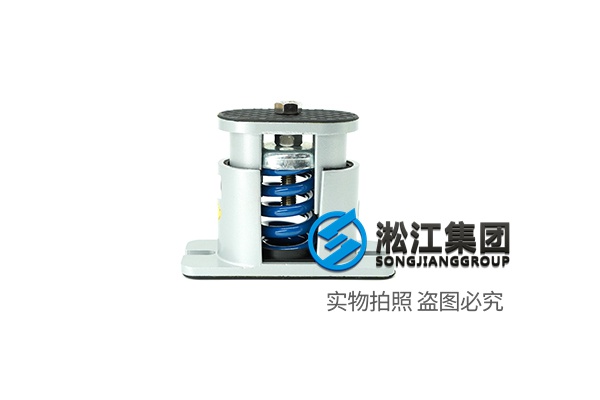

上海淞江减震器集团有限公司官方网站为您介绍：SHA-M-500坐式风机阻尼弹簧减震器信息，淞江集团为坐式风机推荐一款可调式低频阻尼弹簧减震器，该产品具有良好的减震和降噪效果，是众多风机用户的首先。
Shanghai Songjiang absorber group limited official website to introduce you to sit: JB-80-S type fan damping spring damper, Songjiang group for sitting type fan recommend a low frequency adjustable damping spring damper, the product has good shock absorption and noise reduction effect, is the first of many fan users.

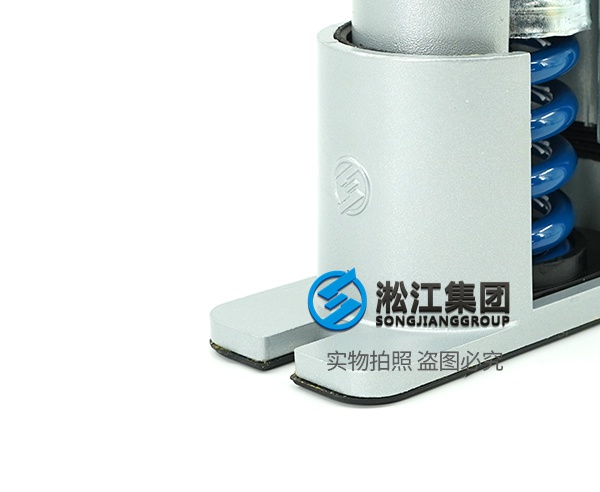

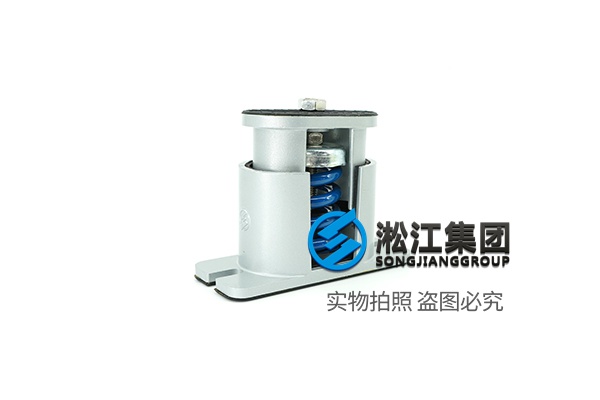

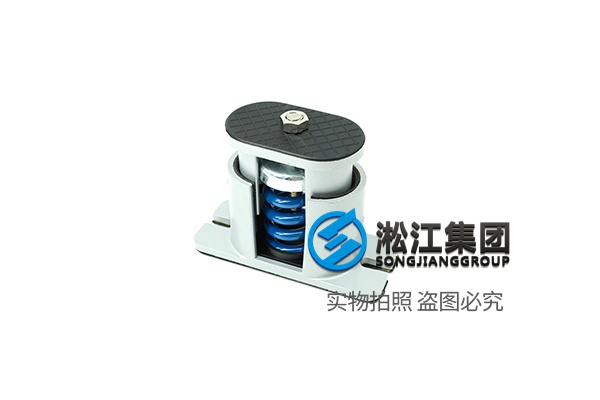

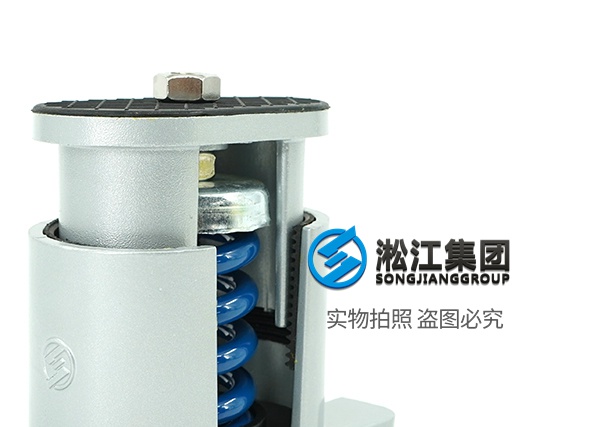

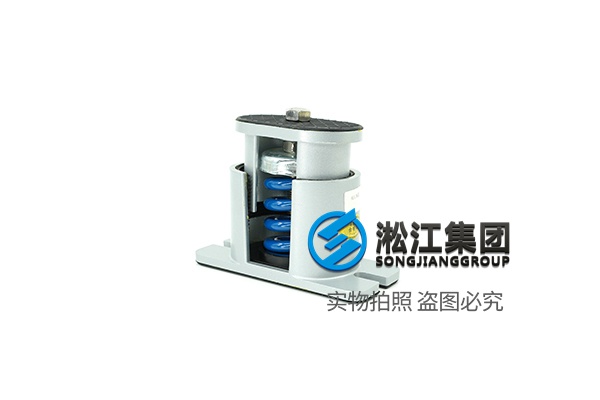

SHA-M-500坐式风机阻尼弹簧减震器特性:
1、本体材质为铝合金。
2、特殊结构设计，可依实际需要调整高度。
3、外形轻巧坚固，安装容易；适用于各类机械内避振装置。
4、弹簧均经热处理，ED放锈，烤漆或喷塑程序处理。
5、荷重挠度25mm能有效消除机械振动。

6、新款SHA型风机减震器本体上设计了淞江集团LOGO作为防伪标识。
SHA-M-500坐式风机阻尼弹簧减震器具有安装方便等特点，减振器上下端各有螺丝及螺丝孔，弹簧上端有高度调节螺母，可根据安装需要自由调整高度减振器两端有侧向橡胶阻尼，加大了垂向的阻尼系数，提高了纵向和横向的刚度，确保设备能更安全的运行。

SHA型坐式风机阻尼弹簧减震器结构图：

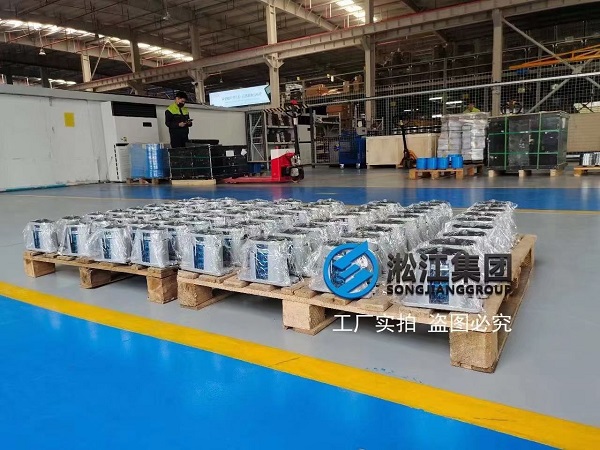

SHA型坐式风机阻尼弹簧减震器发货现场：

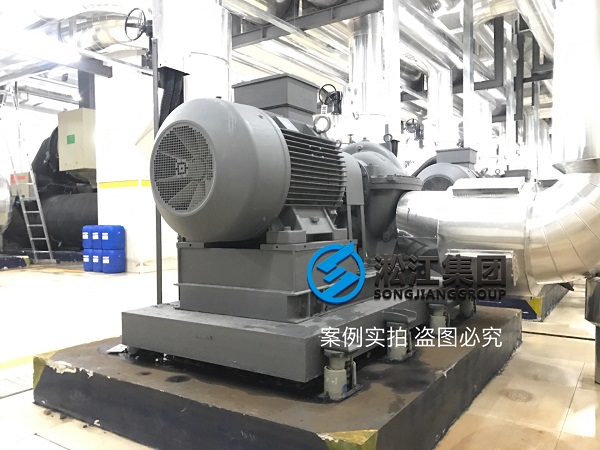

使用现场：EBARA卧式双吸蜗壳泵减震器

以上SHA-M-500坐式风机阻尼弹簧减震器信息来源于上海淞江减震器集团有限公司官方网站减震器产品中心，如需了解更多风机弹簧减震器产品请点击：风机弹簧减震器

相关链接：SHA型可调阻尼弹簧减震器安装说明

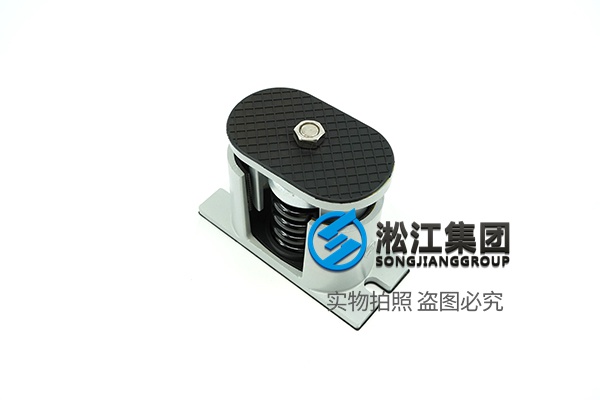

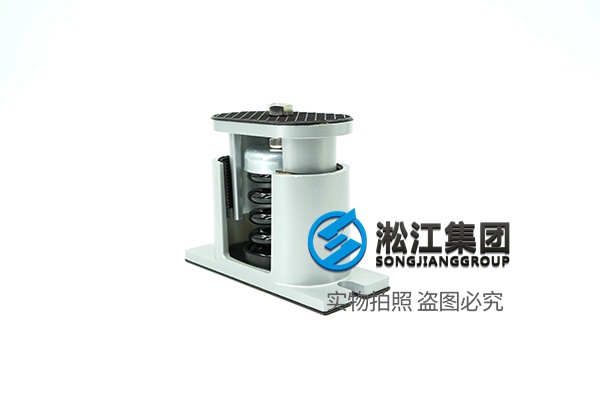

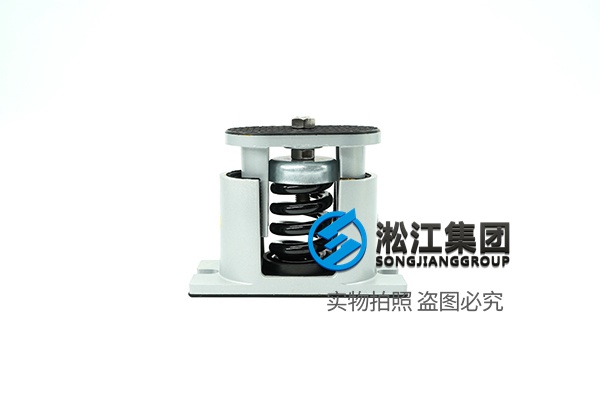

上海淞江减震器集团有限公司官方网站为您介绍：SHA-L-800离心风机弹簧减震器信息，淞江集团为离心风机推荐专用的减震器产品：SHA型低频阻尼可调式弹簧减震器，为风机降低震动和噪音。
Shanghai Songjiang absorber group limited official website for your introduction: SHA-L-800 centrifugal fan spring shock absorber, Songjiang group for centrifugal fan absorber special recommended products: SHA type low frequency damping adjustable shock absorber spring, wind vibration and noise reduction.

SHA-L-800离心风机弹簧减震器又称风机减震器具有结构简单，安装方便等特点，减振器上下端各有螺丝及螺丝孔，弹簧上端有高度调节螺母，可根据安装需要自由调整高度，减震器两端有侧向橡胶阻尼，加大了垂向的阻尼系数，提高了纵向和横向的刚度，确保设备能更安全的运行。

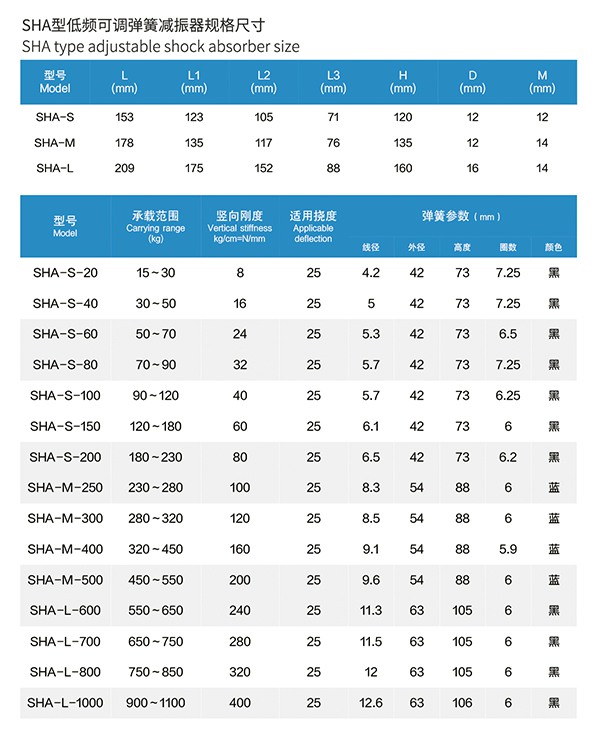

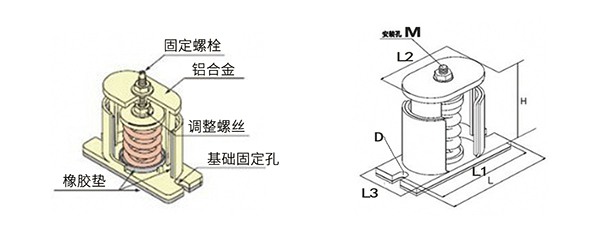

以下是SHA-L-800离心风机弹簧减震器外形尺寸和其他型号表：
The following is the shape size and other type of SHA type low frequency damping spring damper.

以上SHA-L-800离心风机弹簧减震器信息来源于上海淞江减震器集团有限公司官方网站减震器产品中心，如需了解更多请点击：风机弹簧减震器

The above SHA-L-800 centrifugal fan spring shock absorber information comes from Shanghai Songjiang shock absorber Group Co., Ltd. official website shock absorber product center. For more information, please click:

相关链接：SHA型可调阻尼弹簧减震器安装说明

上海淞江减震器集团有限公司官方网站为您介绍：JA783010橡胶减震器信息，淞江集团为空压机配套JA型橡胶减震器产品，效果好，内部橡胶与铁件完全胶合，可提供很好的减震效果，此外并附带有安全锁零件，以保障安全。
Shanghai Songjiang absorber group limited official website for your introduction: JA783010 rubber shock absorber, Songjiang group for compressor of JA type rubber shock absorber products, the best internal rubber and iron piece completely glued, can provide the best damping effect, and also comes with safety lock parts, to ensure safety.

The internal rubber and iron piece completely glued, can provide the best damping effect, and also comes with safety lock parts, to ensure safety.

Many equipment such as water pump, diesel generator, air compressor and motor and so on. Load range: 30-700Kg.

3. It is suitable for all kinds of generator, water pump, fan, air conditioning unit and so on.

JA783010橡胶减震器，空压机橡胶减震器效果好信息来源于上海淞江减震器集团有限公司官方网站，如需了解更多减震器产品请点击：弹簧减震器。

了解该产品详细参数请查看：【样册P86】JA型 橡胶减振器

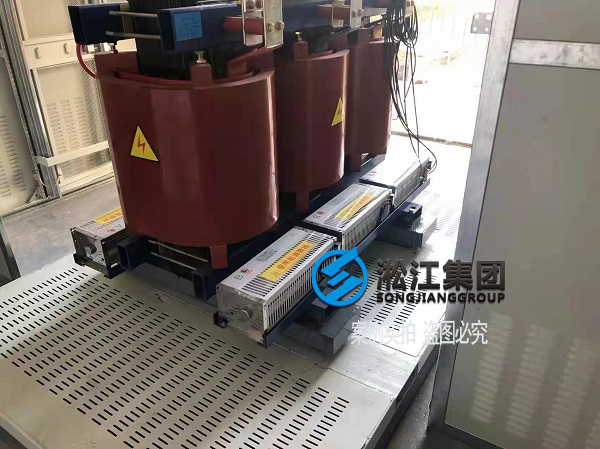

上海淞江减震器集团有限公司官方网站为您介绍：KQJZ-900-A干式变压器空气减震器信息，淞江集团为干式变压器推荐一款减震效果最好的减震器产品：空气减震器，它是目前全球最好的减震器产品，可以将变压器的震动吸收效果好。
Shanghai Songjiang absorber group limited official website for your introduction: KQJZ-900-A dry type transformer air shock absorber, Songjiang group for dry-type transformer to recommend a damping effect best shock absorber products: air damper, which is currently the world's best shock absorber products, The vibration and absorption effect of the transformer is good.

使用案例：上海舜元产业园重建扩建项目

上海淞江减震器集团有限公司官方网站为您介绍：KQJZ-1200-A冲床空气减震器信息，淞江集团为冲床设备推荐一款专用的空气减震器产品，是冲床震动的完美吸收者，众多冲床安装使用后都被空气减震器的优质效果而满意。
Shanghai Songjiang absorber group limited official website introduces for you: KQJZ-1200-A punch air shock absorber, Songjiang group for air damper press equipment recommended a special product, is the perfect vibration absorption of punch, punch after the installation and use are numerous high quality and satisfactory effect of air shock absorber.

使用案例：上海舜元产业园重建扩建项目
