Spring damper for cooling water tower
上海淞江减震器集团有限公司官方网站为您介绍：JS-4-800散热水塔弹簧减震器信息，淞江集团为楼顶散热水塔推荐一款弹簧减震器，充分利用综合钢弹簧的低频和橡胶减振的阻尼特性，可消除高频传，达到明显的减振降噪效果，又能解决机械设备重心不均的减振难点。
Shanghai Songjiang absorber group limited official website for your introduction: JS-4-800 cooling tower spring shock absorber, Songjiang group for cooling tower workshop recommended a spring shock absorber, damping characteristics of the full use of integrated steel spring and rubber damping low frequency, can eliminate the high frequency of vibration and noise reduction effect is obvious, and to solve the difficulty of mechanical equipment vibration center are.
淞江集团生产的所有散热水塔弹簧减震器产品室内使用最高质保10年，那么，淞江集团是如何保证产品能质保10年呢，淞江集团所有弹簧减震器弹簧采用汽车弹簧钢，并非工业弹簧钢可比，良好的原材料才能生产出更好的产品。
Songjiang Group production of all spring shock absorber products 10 years warranty, so the Songjiang group is how to ensure the product warranty of 10 years, Songjiang group all spring shock absorber spring with spring steel, spring steel industry is not comparable, good raw materials to produce better products.
本产品为敞开式结构，安装时可直接放在设备下，调节好重心，然后通过固定孔连接上下端面，也可直接的安置在减振座分支承结构之间。适用风机，水泵，空调机组等机械设备的减振。
This product is an open structure. When installed, it can be directly placed under the equipment, adjust the center of gravity, then connect the upper and lower ends through the fixed holes, or directly install between the damping seat and the supporting structure. It is suitable for the vibration damping of the mechanical equipment, such as the fan, the water pump, the air conditioning unit and so on.
相关链接：主机弹簧减震器
Rubber absorbers for embroidery machines
上海淞江减震器集团有限公司官方网站为您介绍：STR型刺绣机橡胶减震器信息，淞江集团为工业刺绣机推荐一款专用的橡胶减震器产品，该产品用在刺绣机上面具有良好的减震效果和降噪效果。
Shanghai Songjiang absorber group limited official website for your introduction: STR type embroidery machine rubber damper, Songjiang group industrial embroidery machine recommended a special rubber damper, the product used in embroidery machine above has good damping effect and the effect of noise.
STR型刺绣机橡胶减震器结构图：
STR type rubber shock absorber structure:
STR型刺绣机橡胶减震器参数表：
STR rubber shock absorber parameter list:
| 型号 Model | L （mm） |
W（mm） | H （mm） |
CS（mm） | A （mm） |
B （mm） |
载荷 load（kg） | |
| Min | Max | |||||||
| STR-100 | 95 | 53 | 48 | M10 | 77 | 10 | 50 | 150 |
| STR-130 | 127 | 77 | 70 | M12 | 101 | 14 | 150 | 450 |
| STR-180 | 180 | 118 | 70 | M16 | 149 | 14 | 450 | 1000 |
了解该产品详细参数请查看：【样册P81】STR型 橡胶减振器
相关链接：STR橡胶减震器安装说明
]]>
Vertical pump rubber shock absorber
上海淞江减震器集团有限公司官方网站为您介绍：RM120立式水泵橡胶减震器，淞江集团是一家从事工业减震器产品的企业，包括减震器的设计、研发、生产、销售一体化集团性企业。
The official website of Shanghai Songjiang shock absorber Group Co., Ltd. introduces you: RM120 vertical water pump rubber shock absorber, Songjiang group is an enterprise specializing in industrial shock absorber products, including the design, research and development, production and sales integration group business of shock absorber.
以上RM120立式水泵橡胶减震器信息来源于上海淞江减震器集团有限公司官方网站减震器栏目，以下是RM型橡胶减震器参数表：
The rubber damper information of the above RM120 distribution cabinet is from the shock absorber section of the official website of Shanghai Songjiang shock absorber Group Co., Ltd., the following is the RM rubber damper parameter table.
|
型号 Model
|
最佳载荷Optimal load
kg |
外形尺寸 Shape size (mm)
|
||||
|
C
|
L
|
H
|
W
|
Φ
|
||
|
RM-60
|
60
|
76
|
105
|
43
|
10
|
9
|
|
RM-90
|
90
|
76
|
105
|
43
|
10
|
9
|
|
RM-120
|
120
|
76
|
105
|
43
|
10
|
9
|
|
RM-240
|
240
|
105
|
140
|
73
|
12
|
14
|
|
RM-360
|
360
|
105
|
140
|
73
|
12
|
14
|
|
RM-480
|
480
|
105
|
140
|
73
|
12
|
14
|
相关链接：弹簧减震器
]]>Rubber shock absorber for RM360 distribution cabinet
上海淞江减震器集团有限公司官方网站为您介绍：RM360配电柜橡胶减震器，淞江集团为配电柜推荐一款经济实用的橡胶减震器，RM系列，该款减震器安装简单方便，减震效果良好，橡胶型可以减震又可以隔音，是配电柜减震的优选产品。
Shanghai Songjiang absorber group limited official website introduces for you: RM360 distribution cabinet rubber shock absorber, Songjiang group distribution cabinet recommend an economical and practical rubber shock absorber, RM series, the shock absorber installation is simple and convenient, good damping effect, can reduce the shock and rubber insulation, is the preferred product the damping of power distribution cabinet.
配电柜橡胶减震器，既有橡胶剪切的承压性能，又有过负荷保护的压缩性能，整体成型，上端有螺纹安装孔，下端有防滑底板，所有金属由阻尼橡胶覆盖。这种橡胶减振器适用于减少噪声和高频率振动场所，多用于转速大于480转/分的风机、立式卧式水泵、冷水机组等减振降噪。
The RM type rubber shock absorber has both the bearing performance of the rubber shear and the compression performance of overload protection. It has overall forming, the upper end has threaded installation holes, and the bottom part has anti-skid baseplate, all metals are covered by damping rubber. The rubber shock absorber is suitable for reducing noise and high frequency vibration places. It is mainly used for vibration and noise reduction of fans, vertical horizontal pumps and chillers, whose speed is greater than 480 rpm.
RM型配电柜橡胶减震器也可以使用在小型发电机、小型空压机、小型电机，减震效果好，使用成本低，是众多设备厂家配套.选。
以上RM360配电柜橡胶减震器信息来源于上海淞江减震器集团有限公司官方网站减震器栏目，以下是RM型橡胶减震器参数表：
The rubber damper information of the above RM360 distribution cabinet is from the shock absorber section of the official website of Shanghai Songjiang shock absorber Group Co., Ltd., the following is the RM rubber damper parameter table.
|
型号 Model
|
最佳载荷Optimal load
kg |
外形尺寸 Shape size (mm)
|
||||
|
C
|
L
|
H
|
W
|
Φ
|
||
|
RM-60
|
60
|
76
|
105
|
43
|
10
|
9
|
|
RM-90
|
90
|
76
|
105
|
43
|
10
|
9
|
|
RM-120
|
120
|
76
|
105
|
43
|
10
|
9
|
|
RM-240
|
240
|
105
|
140
|
73
|
12
|
14
|
|
RM-360
|
360
|
105
|
140
|
73
|
12
|
14
|
|
RM-480
|
480
|
105
|
140
|
73
|
12
|
14
|
相关链接：弹簧减震器
]]>
Rubber damping pad of 120*120*20 rubber cushion air compressor
上海淞江减震器集团有限公司官方网站为您介绍：120*120*20橡胶减震垫信息，淞江集团为空压机推荐橡胶减震垫产品，该产品安装简单方便，成本低廉，工业空压机减震要求不高的可以选择使用。
Shanghai Songjiang absorber group limited official website for your introduction: 120*120*20 rubber shock pad, Songjiang group for air compressor recommended rubber shock pad product, the product is simple and convenient installation, low cost, industrial air compressor damping requirements is not high can choose to use.
Characteristics and use of products
说明：该产品没有现货，订货需要一周时间。
了解该产品详细参数请查看：【样册P85】SD型 橡胶减振垫

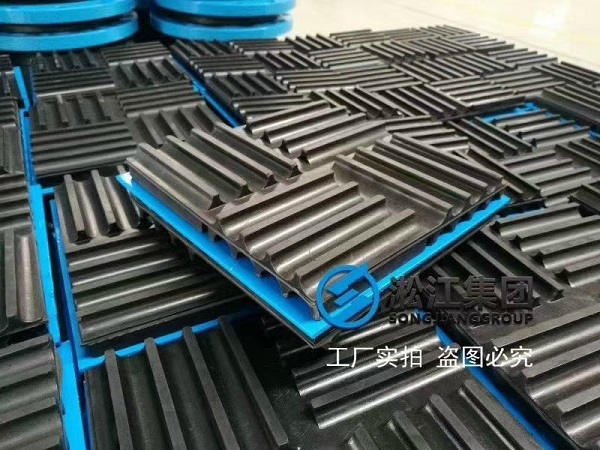

Rubber cushions for small equipment of 150*150*20 rubber cushions
上海淞江减震器集团有限公司官方网站为您介绍：150*150*20橡胶减震垫信息，淞江集团为小型设备推荐橡胶减震垫产品，安装简单方便，平放在设备底部即可，该产品为传统减震，效果一般。
Shanghai Songjiang absorber group limited official website for your introduction: 150*150*20 rubber shock pad, Songjiang group for small devices recommended rubber shock pad products, simple and convenient installation, can be placed at the bottom of the device, the products of traditional damping, the general effect.
Characteristics and use of products
SD type rubber shock pad is made of high quality rubber as the material, there is a circular depression, corrugated hollow shear. In general, shear force, has low natural frequency, simple structure, easy to use. In order to improve the damping effect of the damping pad for two layer, three layer, four layer series. Suitable for water pump, fan, compressor, chiller, diesel and other mechanical equipment of negative damping.
The SD rubber cushion product produced by Songjiang group is produced by high quality natural rubber NR and has good elasticity and makes a certain contribution to the shock absorption of industrial plant.
Rubber damping pad for industrial equipment of 170*170*20 rubber cushion
上海淞江减震器集团有限公司官方网站为您介绍：170*170*20橡胶减震垫信息，工业设备橡胶减震垫是一款最为普通的橡胶减震垫产品，没有什么重量之分，平放在设备底部即可，是传统的减震产品，效果一般。
Shanghai Songjiang absorber group limited official website for your introduction: 170*170*20 rubber shock pad, industrial equipment, rubber shock pad is a most common rubber shock pad products, not what weight, can be flat at the bottom of the device, is the product of traditional damping, the general effect.
The SD rubber shock absorber is manufactured by vulcanization using oil resistant rubber and stretch materials: whost surface can reduce the vertical rigidity.The basic dinension of the shock absorber cushion is 84x84x20(mm).The load range covers from 0.2~6KN．It needs no isolation walls.To improve shock absorption effect, multi-layer. isolation cushion should be used.Sepa-rate, layers can be separated by metal sheet(3mm). The total rigidity of n layers of cushion are 1/n that of a single layer.When the isolated object is relatively lighter, you can cut it into 2 pieces.The rigidity is 1/2 that of the original one. The separated isolating cushion can also be used in series.
SD type rubber shock pad is made of high quality rubber as the material, there is a circular depression, corrugated hollow shear. In general, shear force, has low natural frequency, simple structure, easy to use. In order to improve the damping effect of the damping pad for two layer, three layer, four layer series. Suitable for water pump, fan, compressor, chiller, diesel and other mechanical equipment of negative damping.
淞江集团生产的SD型工业设备橡胶减震垫产品是由优质的天然橡胶NR生产，弹性好，为工业厂房减震做出一定的贡献。
The SD rubber cushion product produced by Songjiang group is produced by high quality natural rubber NR and has good elasticity and makes a certain contribution to the shock absorption of industrial plant.
SD型工业设备橡胶减震垫的特点是既有高弹性，又有高黏性。橡胶的弹性是由其卷曲分子构象的变化产生的，橡胶分子间相互作用会妨碍分子链的运动，从而表现出黏性阻尼的.点，以致应力与应变往往处于不平衡状态。
The characteristics of rubber cushions are both high elasticity and high viscosity. The elasticity of rubber is caused by the change of its conformational conformation. The interaction between rubber molecules will impede the movement of molecular chains, thus exhibiting the characteristics of viscous damping, so that stress and strain are often in an unbalanced state.
了解该产品详细参数请查看：【样册P85】SD型 橡胶减振垫
