        金属软管CASE SHOW

        JTW-SUS型不锈钢金属软连接

        服务内容:JTW-SUS型不锈钢金属软连接

        简介:JTW-SUS型不锈钢金属软连接“食品医药化工” Stainless steel 304 metal soft connection "food and medicine and chemical industry" 上海淞江减震器集团有限公司官方网站为您介绍:JTW-SUS型不锈钢金属软连......

        JTW-SUS型不锈钢金属软连接“食品医药化工”
        Stainless steel 304 metal soft connection "food and medicine and chemical industry"

        上海淞江减震器集团有限公司官方网站为您介绍:JTW-SUS型不锈钢金属软连接“食品医药化工”信息,淞江集团为饮料啤酒厂推荐食品不锈钢金属软连接,为巨化集团配套化工不锈钢金属软连接,为药物生产管线配套医药金属软连接产品。
        Shanghai Songjiang absorber group limited official website for your introduction: JTW-DN100 304 stainless steel metal soft connecting "food medicine chemical information, Songjiang group for beer and beverage factory food stainless steel metal hose connection for Juhua Group supporting chemical stainless steel metal soft connection, for drug production pipeline supporting medical metal soft connecting products.

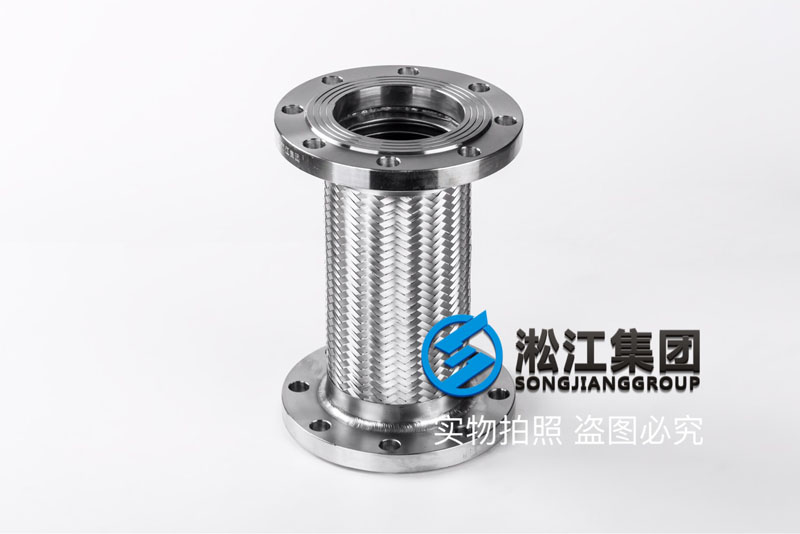

        JTW-SUS型不锈钢金属软连接

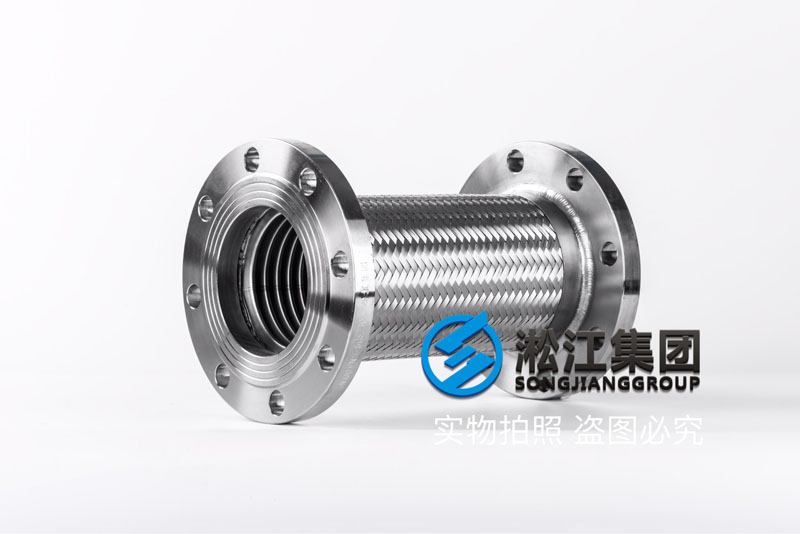

        JTW-SUS型不锈钢金属软连接
        JTW-SUS型不锈钢金属软连接
        JTW-SUS型不锈钢金属软连接
        JTW-SUS型不锈钢金属软连接
        产品名称:不锈钢金属软连接
        型号:JTW-304
        口径:DN100
        压力:16kg
        法兰材质:不锈钢304
        波纹材质:不锈钢304
        编织网材质:不锈钢304
        产品长度:L=300mm(可定制其他长度,大于200mm)
        优点:耐腐蚀、食品级、耐高温、使用压力高、寿命长。
        缺点:只能减震、不能吸收管道的噪音,使用成本高,那么需要又能减震、又能降噪,成本还低的产品是限位橡胶365bet亚洲版登陆_365bet代理_office365 。

        介质要求:请在管道进水口加装有效去除氯离子装置(氯离子含量不超过25mg/L),避免水氯离子含量超标,产生针孔腐蚀;

        橡胶365bet亚洲版登陆_365bet代理_office365 是用在设备进出口的,可以补偿轴向和横向位移,减震效果是最好的。并且不受管道内部介质的腐蚀。

        金属软管(外面带编织网的)这种可以用在设备进出口,可以起到减震的作用,也可以补偿横向位移,轴向位移很小的。但是要注意介质腐蚀问题。

        品牌:淞江集团
        产地:上海
        生产厂家:上海淞江减震器集团有限公司
        了解该产品参数信息请点击:【样册P97】JTW型不锈钢金属软管
        Product Name: stainless steel metal soft connection
        Model: JTW-304
        Caliber: DN100
        Pressure: 16KG
        Flange material: stainless steel 304
        Corrugated material: stainless steel 304
        Woven net material: stainless steel 304
        Product length: L=300mm (customizable)
        Advantages: high pressure and long life.
        Disadvantages: it can only absorb shock, not absorb the noise of pipeline, and has high use cost, so it needs shock absorption and noise reduction. The product with low cost is the limited rubber joint.
        Brand: Songjiang group
        Origin: Shanghai

        Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.

        材料说明:

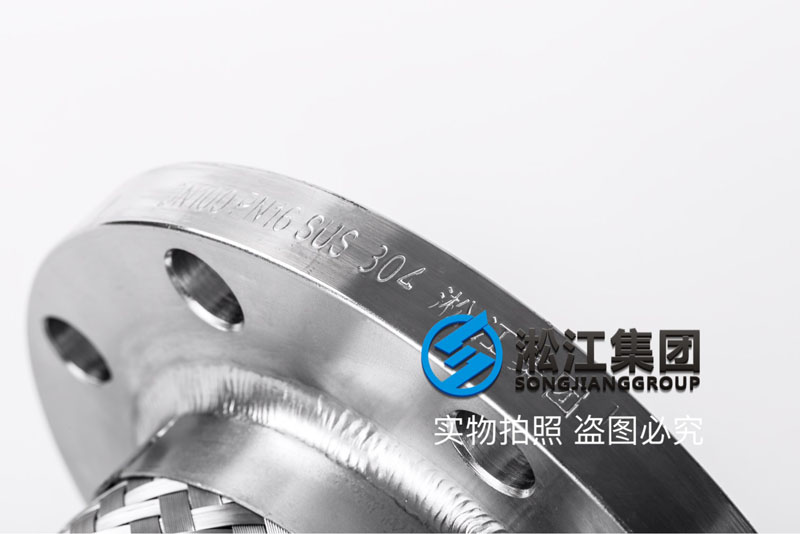

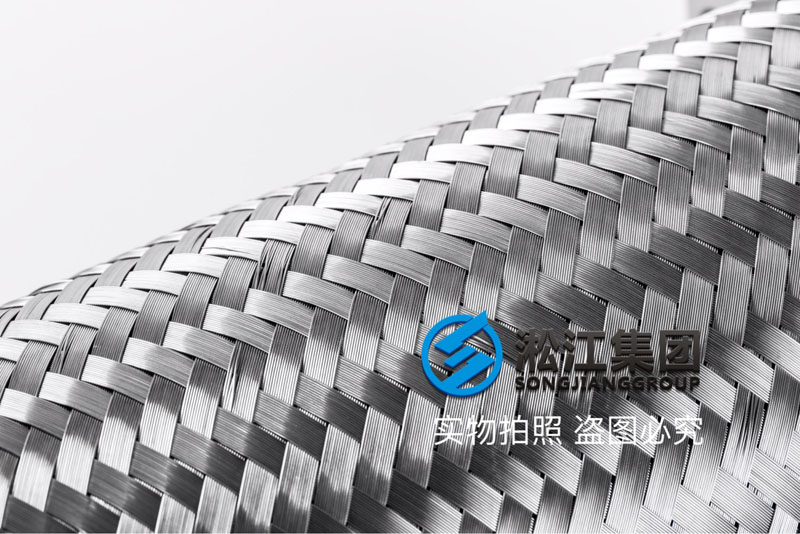

        法兰、波纹管体、编织网:为了更持久的使用寿命,全部采用不锈钢304正材生产,支持各种光谱仪检测,假一赔十,厚度全部厚于同行业标准。
        焊材:焊材全部采高于母材等级标准,让焊接点更加牢固。
        Material description:
        Flanges, bellows and braided nets: for longer, all stainless steel 304 is used to produce all kinds of spectrometers, with a false compensation of ten. The thickness is all thicker than the same industry standard.
        Welding consumables: welding materials are higher than the level of the parent material standard, let the welding point more firmly.
        JTW-SUS型不锈钢金属软连接主要用食品、饮水、医药、化工、液压等管道系统,起到减震的作用;
        法兰和中间管网材质:可以做不锈钢304、316、321三种材质;
        法兰固定:两端的法兰可以制作固定式或松套式,也可以做一端固定,一端松套,方便安装;法兰连接数据可以选择GB/T 9119-2010也可以选择其他法兰标准生产;产品压力:1.0MPa、1.6MPa、2.5MPa;
        产品长度:标准长度与样册P97相同,也可以定制各种长度;
        严禁拉伸:建议金属软管的工作是压缩,而不是拉伸,更不允许扭转;
        施工防范:当焊接工作发生时,金属软管本体必须防止焊接发热和火花;
        介质要求:请在管道进水口加装有效去除氯离子装置(氯离子含量不超过25mg/L),避免水中氯离子含量超标,产生针孔腐蚀;
        JTW-SUS型不锈钢金属软连接
        JTW-SUS型不锈钢金属软连接
