【空调软管】中央空调风机软连接

服务内容：【空调软管】中央空调风机软连接

简介：【空调软管】中央空调风机软连接“让每个房间都安静下来” "Air conditioning hose] the soft connection of the central air conditioner fan" let each room be quiet. " 上海淞江减震器集团有限公司官方网......

【空调软管】中央空调风机软连接“让每个房间都安静下来”
"Air conditioning hose] the soft connection of the central air conditioner fan" let each room be quiet. "

上海淞江减震器集团有限公司官方网站为您介绍：【空调软管】中央空调风机软连接“让每个房间都安静下来”信息，淞江集团为众多星级酒店、大学、医院、机场等高端场所配套空调软管，让每一个风机都隔离震动、降低噪音，给大家一个安静、舒适的环境。
Shanghai Songjiang absorber group limited official website for your introduction: [] of the central air conditioning air conditioning hose soft connection "let each room quiet" information, Songjiang group for many star hotels, universities, hospitals, airports and other high-end places supporting air conditioning hose, make every fan vibration isolation, to reduce noise, give you a quiet and comfortable environment.

DN20

DN25

DN32

DN40

DN50

1.产品名称：空调软管

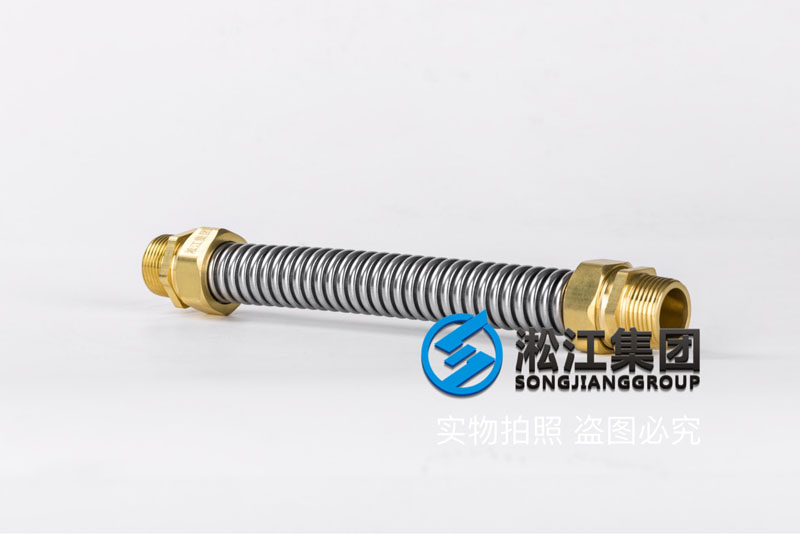

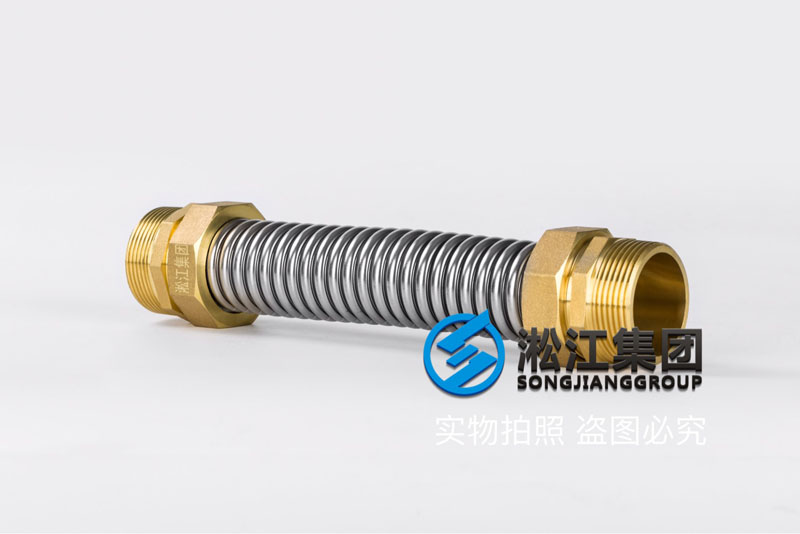

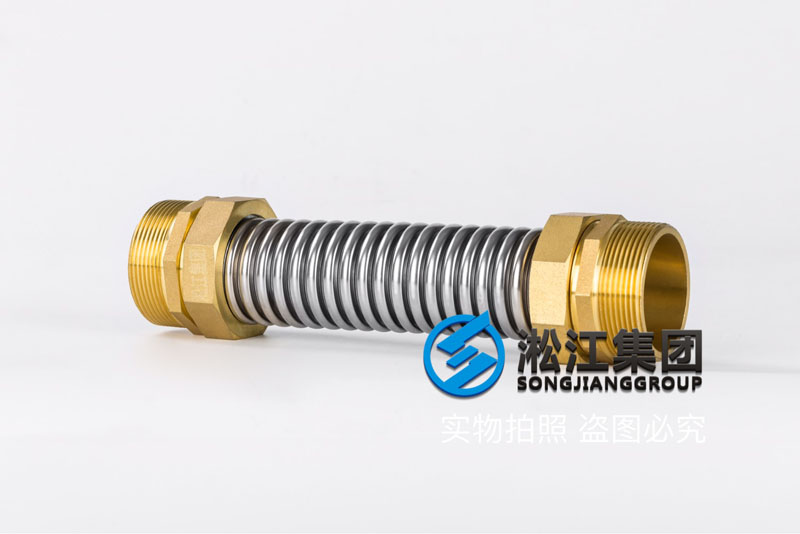

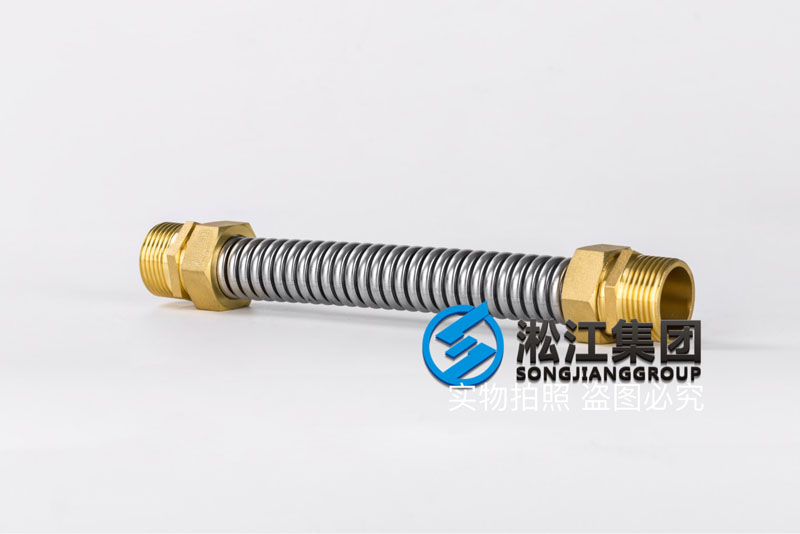

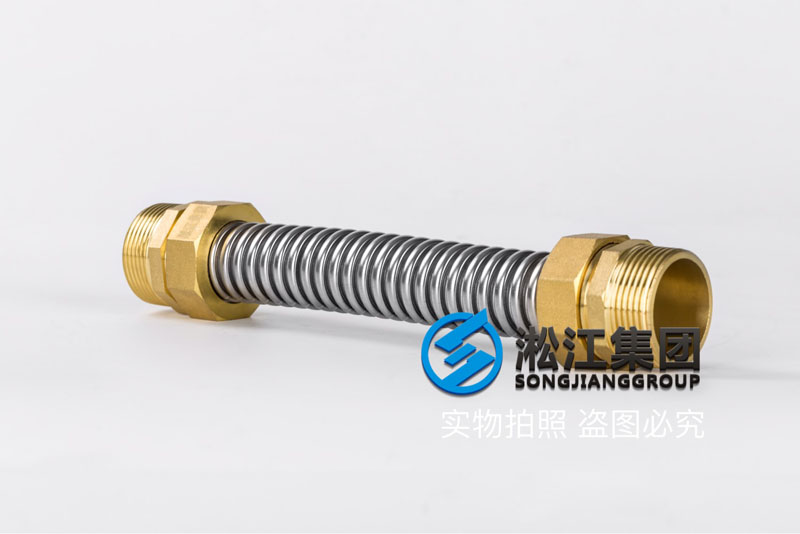

2.产品图片：见上图

3.产品结构：内螺纹365bet亚洲版登陆_365bet代理_office365 +外丝

4.产品特点：无需焊接，可按需要长度自行装配

5.产品通径：DN20~DN50

6.制作长度：100mm~1000mm（标准长度为250mm）

7.产品材料：

①六角365bet亚洲版登陆_365bet代理_office365 ：铜/不锈钢

②六角螺母：铜/不锈钢

③密封垫圈：硅橡胶/优质橡胶

④波纹波管：SUS304

8.适用于：风机盘管

9.优点：安装简单方法，成本低

10.介质要求：请在管道进水口加装有效去除氯离子装置（氯离子含量不超过25mg/L），避免水氯离子含量超标，产生针孔腐蚀；

11、橡胶365bet亚洲版登陆_365bet代理_office365 是用在设备进出口的，可以补偿轴向和横向位移，减震效果是最好的。并且不受管道内部介质的腐蚀。

1. Product Name: air conditioning hose

2. product picture: see the picture above

3. product structure: internal thread joint + outer wire

4. product features: without welding, it can be assembled according to the required length

5. product path: DN20~DN50

6. production length: 100mm~1000mm (standard length is 250mm)

7. product materials:

Six angle joint: copper / stainless steel

Six angle nut: copper / stainless steel

(3) sealing washer: silicone rubber / high quality rubber

Corrugated tube: SUS304

一般中央空调风机盘管都会安装软连接，在进水口和回水口处都会安装上软连接、过滤器、阀门这3个部件。
这个软连接一般分为2大类：
1、金属软连接（全不锈钢金属软管、铜头波纹软管）
2、橡胶软连接（螺纹丝扣橡胶365bet亚洲版登陆_365bet代理_office365 ）
空调系统里的水在不停的循环，导致管道产生震动和噪音，为了更好的满足每个风机盘管的安静，在每个风机盘管的进口和出口安装上软连接，可以大大降低震动和噪音，另外在风机盘管的上方安装4个吊式风机弹簧减震器，这样可以将风机盘管完全与楼层和管道系统隔离，从而达到风机震动，楼层和管道不震动的效果。

General central air-conditioning fan coil will install soft connection, the inlet and outlet water will be installed on the valve, filter, connecting the 3 parts.

This soft connection is generally divided into 2 major categories:

1, metal soft connection (all stainless steel metal hose, copper head corrugated hose)

2, soft rubber connection (threaded connection soft rubber)

The water in the air conditioning system in continuous circulation, resulting in pipeline vibration and noise generated, in order to better meet the needs of each fan coil in the quiet, each fan coil inlet and outlet installation soft connection, can greatly reduce the vibration and noise, and at the top of the fan coil installed 4 hanging type spring shock absorber so, can be completely with the floor and the fan coil pipe system isolation, so as to achieve the fan vibration, and vibration effect of floor pipeline.

相关链接：【样册P96】各种类型不锈钢金属软管

相关案例：【绵阳仙海龙湾喜来登项目】空调软管合同
