【FKM】DN80氟橡胶软连接“化工厂管道好帮手”

服务内容：【FKM】DN80氟橡胶软连接“化工厂管道好帮手”

简介：【FKM】DN80氟橡胶软连接“化工厂管道好帮手” DN65 single ball fluorine rubber soft connection "good assistant of chemical plant piping" 上海淞江减震器集团有限公司官方网站为您介绍：【FKM】DN80氟橡......

【FKM】DN80氟橡胶软连接“化工厂管道好帮手”
DN65 single ball fluorine rubber soft connection "good assistant of chemical plant piping"

上海淞江减震器集团有限公司官方网站为您介绍：【FKM】DN80氟橡胶软连接“化工厂管道好帮手”信息，淞江集团为化工厂酸碱管道生产一款耐酸碱型橡胶软连接产品，采用氟橡胶生产，具有良好的耐酸碱性能，也有耐高温140的性能，以下是DN80单球氟橡胶软连接实物拍照和介绍。
The official website of Shanghai Meijiang Shock Absorber Group Co., Ltd. [FKM] DN80 single ball fluororubber soft connection "good helper in chemical plant pipeline" information, Meijiang Group for the chemical plant acid-base pipeline production of an acid-resistant rubber joint products, using fluororubber production, with good acid and alkali resistance, but also high temperature 140 The performance of the following is DN80 single ball fluorine rubber soft connection physical photo.

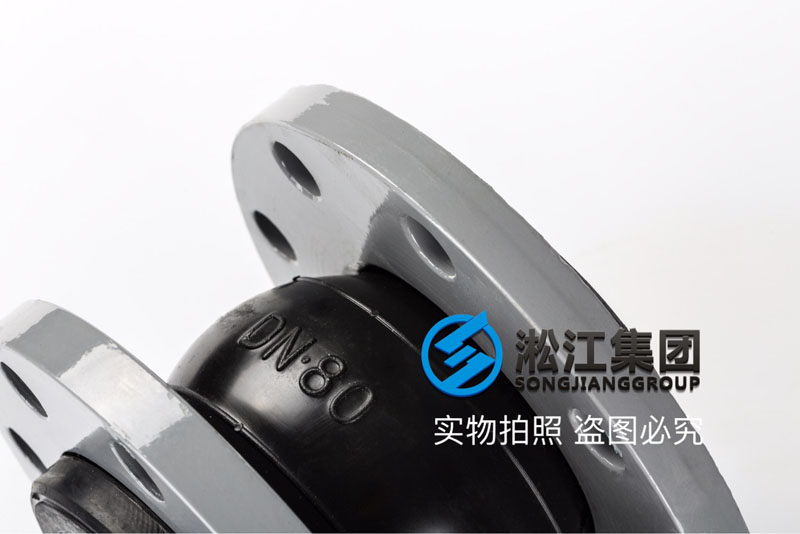

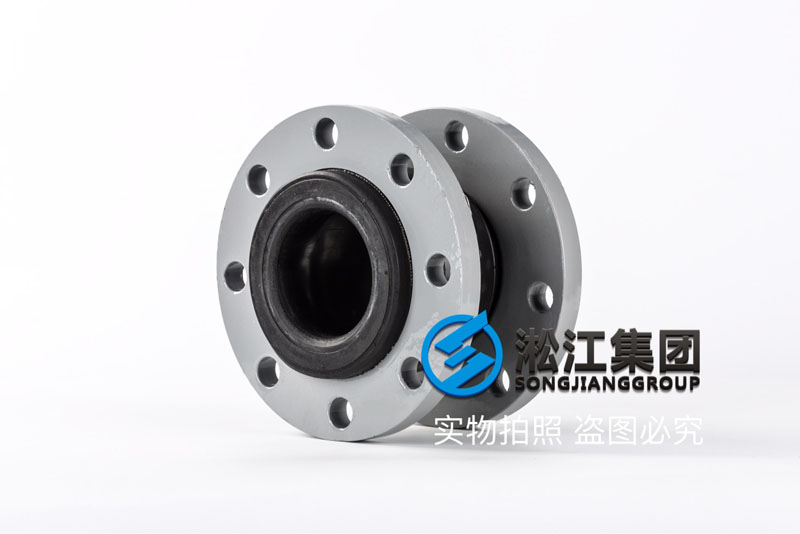

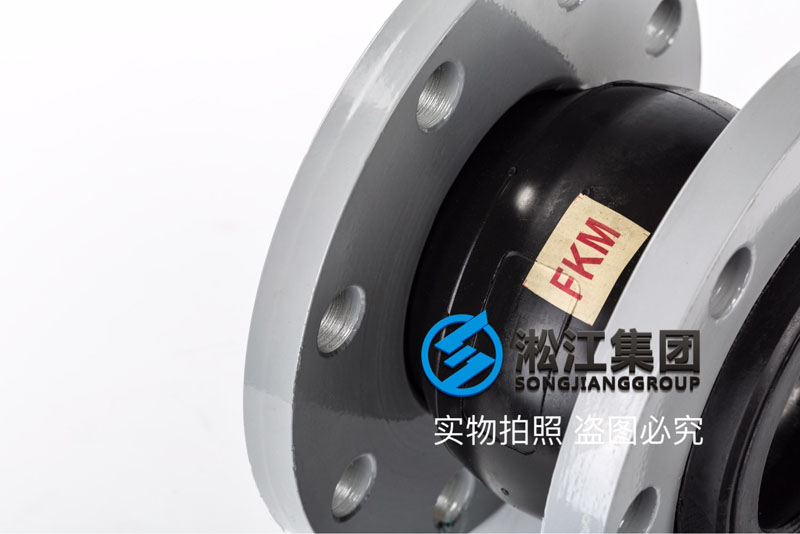

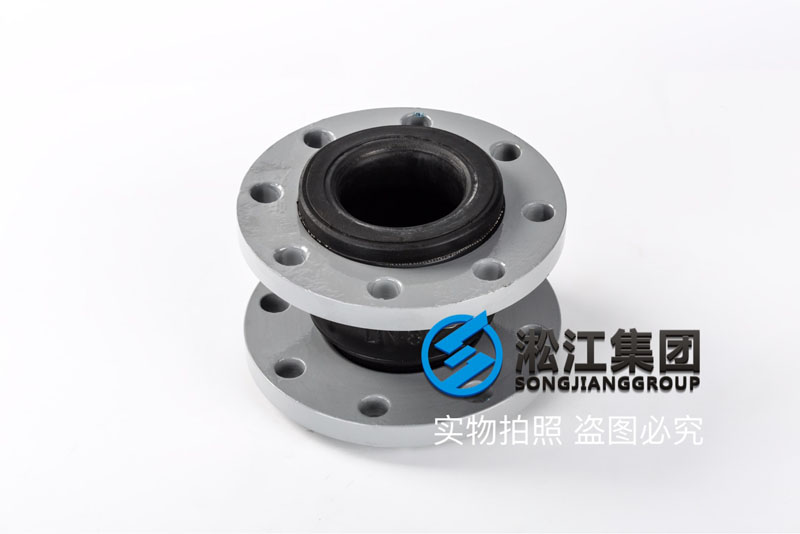

一、DN80化工厂氟橡胶软连接实物拍照：

二、DN80化工厂氟橡胶软连接参数介绍：

名称：单球氟橡胶软连接

型号：DN80

安装长度：135mm

轴向压缩：12mm

轴向拉伸：6mm

横向位移：10mm

偏转角度：15°

标准：GB/T 9119-2000

压力：PN16

法兰：碳钢 / 球墨

介质：酸碱、油类、高温140度以下

质保：1年

橡胶材质：氟橡胶（FKM）

使用优点：减震、降噪、保护管道设备的长期使用，降低维修成本。

生产厂家：上海淞江减震器集团有限公司

了解该产品更多型号参数表请点击：【样册P33】KXT型可曲挠橡胶365bet亚洲版登陆_365bet代理_office365

资质证书：合格证、质保书、检验报告、德国莱茵TUV认证、国家型式试验报告、第三方性能检测报告、材质报告等。

淞江集团橡胶365bet亚洲版登陆_365bet代理_office365 生产流程：原材料检测-小料自动配料-大料自动配料-自动混炼-自动成筒-自动成型-自动硫化-质量检测-实验室检测-交付客户

Name: single ball fluorine rubber soft connection

Model: DN80

Installation length: 135mm

Axial compression: 12mm

Axial tension: 6mm

Lateral displacement: 10mm

Deflection angle: 15 degrees.

Standard: GB/T 9119-2000

Pressure: PN16

Flange: carbon steel / spheroidal graphite

Medium: acid base, high temperature below 140 degrees.

Warranty: 1 years

Rubber material: fluorine rubber (FKM)

Advantages: shock absorption, noise reduction, protection of pipeline equipment for long-term use, and reduction of maintenance costs.

Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.

Qualification Certificate: Qualification Certificate, Quality Guarantee, Inspection Report, TS Pressure Pipeline Production License of Rubber Joint Industry, National Type Test Report, Third Party Performance Test Report, Material Report, etc.

Production Process of Rubber Joints in Songjiang Group: Raw Material Testing - Automatic Blending of Small Material - Automatic Blending of Large Material - Automatic Mixing - Automatic Barrel Forming - Automatic Forming - Automatic Vulcanization - Quality Testing - Laboratory Testing - Delivery to Customers

三、DN80化工厂氟橡胶软连接公司介绍：
The following is the introduction of Songjiang group

除了氟橡胶可以耐强酸碱之外，还有一款内衬四氟橡胶365bet亚洲版登陆_365bet代理_office365 也可以耐强酸碱，内衬四氟耐强酸碱的性能比氟橡胶还要好，价格和氟橡胶价格都差不多，如需了解请点击：PTFE内衬聚四氟乙烯橡胶365bet亚洲版登陆_365bet代理_office365
